Unplanned standstills of machines and systems as a result of insulation errors can have serious consequences. By detecting such errors in ungrounded networks (IT networks) early on, DOLD insulation monitors prevent outages of electrical systems and thus guarantee higher operating and system security. The system operator is informed early on about pending critical operating conditions and people and machinery are protected by the insulation monitoring. The functionality of DOLD insulation monitoring devices has been intentionally designed simply. You profit twice over from this: through high user-friendliness as well as cost savings.

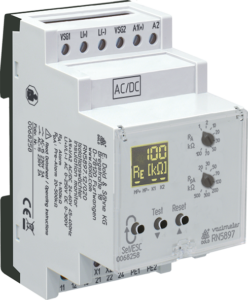

	Insulation monitor for DC charging stations - RN5897/020 • 2 separate adjustable response thresholds (using e.g. for pre-alarm and Alarm) • Setting range of 1st response value (Pre-alarm): 20 kΩ … 500 kΩ • Setting range of 2nd response value (alarm): 1 kΩ … 100 kΩ • 1 changeover contacts each for insulation failures-Pre-alarm and -alarm • Energized or de-energized on trip can be selected for indicator relay • Display for indication of measured value, device parameters and device status • Automatic and manual device self-test • Alarm storage selectable • Protection against manipulation by sealable transparent cover • External control input for combined test- / reset-button with additional Stop of the measuring function • 3 wide voltage input for auxiliary voltage • Width 52.5 mm	Download datablad
	Insulation monitor RN 5897/010 • Insulation monitoring according to IEC/EN 61557-8 • With connection facility of an external coupling device RP 5898 for voltages up to 1000 V • Trigger output for insulation fault locating system • 2 separate adjustable response thresholds (using e.g. for pre-Alarm and Alarm) • Setting range of 1st response value (Pre-Alarm): 20 kΩ … 2 MΩ • Setting range of 2nd response value (Alarm): 1 kΩ … 250 kΩ • 2 changeover contacts für insulation failures-Pre-Alarm and -Alarm • Energized or de-energized on trip can be selected for indicator relay • Display for indication of measured value, device parameters and device status • Setting the maximum leakage capacitance to shorten the response time • Automatic and manual device self-test • Alarm storage selectable • Protection against manipulation by sealable transparent cover • External control input for combined Test-/Reset-button • 3 wide voltage input for auxiliary voltage • Width 52.5 mm	Download datablad
	Insulation monitor RN 5897/300 • Insulation monitoring according to IEC/EN 61557-8 • 2 separate adjustable response thresholds (using e.g. for pre-Alarm and Alarm) • Setting range of 1st response value (Pre-Alarm): 20 kΩ … 1 MΩ: • Setting range of 2nd response value (Alarm): 10 kΩ … 250 kΩ • 2 changeover contacts für insulation failures-Pre-Alarm and -Alarm • Energized or de-energized on trip can be selected for indicator relay • LED for status indication • Automatic and manual device self-test • Alarm storage selectable • Protection against manipulation by sealable transparent cover • External control input for combined Test-/Reset-button • 3 wide voltage input for auxiliary voltage • Width 52.5 mm	Download datablad
	Insulation monitor LK 5896 • Insulation monitoring according to IEC/EN 61557-8 • Detection of symmetric and asymmetric insulation faults • Measuring circuits can be disconnected via control terminals, e.g. for mains couplings • 1 changeover contact each for prewarning and alarm • 3. output relay for signalling wire break and device faults • Prewarning threshold setting range: 20 kΩ ... 2 MΩ • Alarm threshold setting range: 1 kΩ ... 250 kΩ • Energized or de-energized on trip can be selected for output relay • Setting the maximum leakage capacitance to shorten the response time • Simple, clearly arranged adjustment of the device with screwdriver • LED chain to indicate the current insulation resistance • Display of active measuring circuits • Automatic and manual device self-test • Alarm storage selectable • External test and reset pushbutton can be connected • Width: 90 mm	Download datablad
	Insulation monitor LK 5896/900 • Insulation monitoring according to IEC/EN 61557-8 • Detection of symmetric and asymmetric insulation faults • 1 changeover contact each for prewarning and alarm • 3. output relay for signalling wire break and device faults • Prewarning threshold setting range: 20 kΩ ... 2 MΩ • Alarm threshold setting range: 1 kΩ ... 250 kΩ • Energized or de-energized on trip can be selected for output relay • Setting the maximum leakage capacitance to shorten the response time • Simple, clearly arranged adjustment of the device with screwdriver • LED chain to indicate the current insulation resistance • Display " measuring circuits active" • Display "Master" or "Slave" • Automatic and manual device self-test • Alarm storage selectable • External test and reset pushbutton can be connected • With watchdog timer to monitor the trigger signal • Width: 90 mm	Download datablad
	Insulation monitor LK 5895 • Insulation monitoring according to IEC/EN 61557-8 • Detection of symmetric and asymmetric insulation faults • Measuring circuits can be disconnected via control terminals, e.g. for mains couplings • 1 changeover contact each for prewarning and alarm • Prewarning threshold setting range: 20 kΩ ... 2 MΩ • Alarm threshold setting range: 1 kΩ ... 250 kΩ • Energized or de-energized on trip can be selected for output relay • Setting the maximum leakage capacitance to shorten the response time • Simple, clearly arranged adjustment of the device with screwdriver • LED chain to indicate the current insulation resistance • Display of active measuring circuits • Automatic and manual device self-test • Alarm storage selectable • External test and reset pushbutton can be connected • Width 90 mm	Download datablad
	Insulation monitor LK 5894 • Insulation monitoring according to IEC/EN 61557-8 • Detection of symmetric and asymmetric insulation faults • 2 changeover contacts • Prewarning threshold setting range: 20 kΩ ... 2 MΩ • Alarm threshold setting range: 1 kΩ ... 250 kΩ • Energized or de-energized on trip can be selected for output relay • Setting the maximum leakage capacitance to shorten the response time • Simple, clearly arranged adjustment of the device with screwdriver • LED chain to indicate the current insulation resistance • Display of active measuring circuits • Automatic and manual device self-test • Width: 90 mm	Download datablad
	Insulation monitor UH 5892 • Insulation monitoring according to IEC/EN 61557-8 • Detection of symmetric and asymmetric insulation faults • 1 changeover contact for alarm • Fixed response value RAN: 50 kΩ, other on request • Internal reset and test pushbutton • External test and reset pushbutton can be connected • LED indicator for auxiliary voltage and alarm • LED chain to indicate the current insulation resistance • Automatic or manual reset, programmable • Analogue output for insulating value • External indicating instrument can be connected • Closed circuit operation • Open circuit operation on request • With pluggable terminal blocks for easy exchange of devices - with screw terminals - or with cage clamp terminals • Width 45 mm	Download datablad
	Insulation monitor IL 5880 • According to IEC/EN 61 557-8 • For single and 3-phase AC-systems up to 0 ... 500 V and 10 ... 10000 Hz • Adjustable tripping value RAL of 5 ... 100 kΩ • Monitors also disconnected voltage systems • De-energized on trip • Auxiliary voltage Measuring Circuit and output contacts are galvanically separated • Manual and auto reset • With test and reset button • Connections of external test and reset buttons possible • LED indicators for operation and alarm • 2 changeover contacts • IL/SL 5880/200 with additional prewarning - adjustable prewarning value 10 kΩ ... 5 MΩ - output function programmable • Variant IL/SL 5880/300 according to DIN VDE 0100-551 for mobile generator sets available • 4 models available: IL 5880, IP 5880: 61 mm deep with terminals near to the bottom to be mounted in consumer units or industrial distribution systems according to DIN 43 880 SL 5880, SP 5880: 98 mm deep with terminals near to the top to be mounted in cabinets with mounting plate and cable ducts • DIN rail or screw mounting • 35 mm width	Download datablad
	Insulation monitor IP 5880 • According to IEC/EN 61 557-8 • For single and 3-phase AC-systems up to 0 ... 500 V and 10 ... 10000 Hz • Adjustable tripping value RAL of 5 ... 100 kΩ • Monitors also disconnected voltage systems • De-energized on trip • Auxiliary voltage Measuring Circuit and output contacts are galvanically separated • Manual and auto reset • With test and reset button • Connections of external test and reset buttons possible • LED indicators for operation and alarm • 2 changeover contacts • IL/SL 5880/200 with additional prewarning - adjustable prewarning value 10 kΩ ... 5 MΩ - output function programmable • Variant IL/SL 5880/300 according to DIN VDE 0100-551 for mobile generator sets available • 4 models available: IL 5880, IP 5880: 61 mm deep with terminals near to the bottom to be mounted in consumer units or industrial distribution systems according to DIN 43 880 SL 5880, SP 5880: 98 mm deep with terminals near to the top to be mounted in cabinets with mounting plate and cable ducts • DIN rail or screw mounting • 35 mm width	Download datablad
	Insulation monitor SL 5880 • According to IEC/EN 61 557-8 • For single and 3-phase AC-systems up to 0 ... 500 V and 10 ... 10000 Hz • Adjustable tripping value RAL of 5 ... 100 kΩ • Monitors also disconnected voltage systems • De-energized on trip • Auxiliary voltage Measuring Circuit and output contacts are galvanically separated • Manual and auto reset • With test and reset button • Connections of external test and reset buttons possible • LED indicators for operation and alarm • 2 changeover contacts • IL/SL 5880/200 with additional prewarning - adjustable prewarning value 10 kΩ ... 5 MΩ - output function programmable • Variant IL/SL 5880/300 according to DIN VDE 0100-551 for mobile generator sets available • 4 models available: IL 5880, IP 5880: 61 mm deep with terminals near to the bottom to be mounted in consumer units or industrial distribution systems according to DIN 43 880 SL 5880, SP 5880: 98 mm deep with terminals near to the top to be mounted in cabinets with mounting plate and cable ducts • DIN rail or screw mounting • 35 mm width	Download datablad
	Insulation Monitor SP 5880 • According to IEC/EN 61 557-8 • For single and 3-phase AC-systems up to 0 ... 500 V and 10 ... 10000 Hz • Adjustable tripping value RAL of 5 ... 100 kΩ • Monitors also disconnected voltage systems • De-energized on trip • Auxiliary voltage Measuring Circuit and output contacts are galvanically separated • Manual and auto reset • With test and reset button • Connections of external test and reset buttons possible • LED indicators for operation and alarm • 2 changeover contacts • IL/SL 5880/200 with additional prewarning - adjustable prewarning value 10 kΩ ... 5 MΩ - output function programmable • Variant IL/SL 5880/300 according to DIN VDE 0100-551 for mobile generator sets available • 4 models available: IL 5880, IP 5880: 61 mm deep with terminals near to the bottom to be mounted in consumer units or industrial distribution systems according to DIN 43 880 SL 5880, SP 5880: 98 mm deep with terminals near to the top to be mounted in cabinets with mounting plate and cable ducts • DIN rail or screw mounting • 35 mm width	Download datablad
	Insulation monitor MK 5880N • According to IEC/EN 61 557-8 • For single and 3-phase AC-systems up to 0 ... 500 V and 10 ... 1000 Hz • Monitors also disconnected voltage systems • Adjustable tripping value RALof 5 ... 100 kΩ • De-energized on trip • Auxiliary voltage, measuring circuit and output contacts are galvanically separated • Manual and auto reset • With test and reset button • Connections for external test and reset buttons possible • LED indicators for operation and alarm • 2 changeover contacts • MK 5880N/200 with additional prewarning - adjustable prewarning value 10 kΩ ... 5 MΩ - 1 output relay for alarm and 1 for pre-warning • MH 5880/500: similar to MK 5880N but with galvanic separated analogue output and 11 step LED chain for the actual insulation value • Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4 • As option with pluggable terminal blocks for easy exchange of devices - with screw terminals - or with cage clamp terminals • MK 5880N: 22.5 mm width MH 5880: 45 mm width	Download datablad
	Insulation monitor MH 5880 • According to IEC/EN 61 557-8 • For single and 3-phase AC-systems up to 0 ... 500 V and 10 ... 1000 Hz • Monitors also disconnected voltage systems • Adjustable tripping value RALof 5 ... 100 kΩ • De-energized on trip • Auxiliary voltage, measuring circuit and output contacts are galvanically separated • Manual and auto reset • With test and reset button • Connections for external test and reset buttons possible • LED indicators for operation and alarm • 2 changeover contacts • MK 5880N/200 with additional prewarning - adjustable prewarning value 10 kΩ ... 5 MΩ - 1 output relay for alarm and 1 for pre-warning • MH 5880/500: similar to MK 5880N but with galvanic separated analogue output and 11 step LED chain for the actual insulation value • Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4 • As option with pluggable terminal blocks for easy exchange of devices - with screw terminals - or with cage clamp terminals • MK 5880N: 22.5 mm width MH 5880: 45 mm width	Download datablad
	Insulation monitor RP 5888 • Increasing the availability of machines and plants • For preventive maintenance • According to IEC/EN 61 557-8 • With configurable analogue output for insulating value • For three-phase and A.C. power systems with 0 ... 500 V and 10 ... 1000 Hz • Adjustable alarm value for ground fault RAL of 5 k ... 5 MΩ • Monitors also disconnected voltage systems • Energized / de-energized on trip settable • Measuring circuit, auxiliary voltage, output contacts and analogue output are galvanically separated • Programmable for manual reset or hysteresis function • With test and reset button • Connections for external test and reset buttons possible • LED indicators for operation and alarm • 2 changeover contacts • Output function programmable • Width: 70 mm	Download datablad
	Insulation monitor for medical areas IN 5880/711 • According to IEC/EN 61 557-8 • For rooms used for medical purposes according to IEC 60364-7-710, DIN VDE 0100-710 • For three-phase and A.C. power systems with 0 … 500 V and 10 … 1000 Hz (IT power systems) • Adjustable alarm value for ground fault RAL of 50 … 500 kΩ • Measuring circuit with broken wire protection • As option, programmable for storing or non-storing of errors • With reset and test button • Additional external reset and test buttons can be connected • LED indicators for operation, insulation fault, and interruption of Measuring circuit • 2 changeover contacts • With LED chain for indication of the current insulation status • IP 5880/711 for connection of the test and display panel UP 5862 • 52.5 mm width	Download datablad
	Insulation monitor for medical areas IP 5880/711 • According to IEC/EN 61 557-8 • For rooms used for medical purposes according to IEC 60364-7-710, DIN VDE 0100-710 • For three-phase and A.C. power systems with 0 … 500 V and 10 … 1000 Hz (IT power systems) • Adjustable alarm value for ground fault RAL of 50 … 500 kΩ • Measuring circuit with broken wire protection • As option, programmable for storing or non-storing of errors • With reset and test button • Additional external reset and test buttons can be connected • LED indicators for operation, insulation fault, and interruption of Measuring circuit • 2 changeover contacts • With LED chain for indication of the current insulation status • IP 5880/711 for connection of the test and display panel UP 5862 • 52.5 mm width	Download datablad
	Insulation monitor AN 5873 Insulation monitoring according to IEC/EN 61 557-8 • Fixed response value RAN • Internal reset button • External reset and test button can be connected • LED indicator • 1 changeover contact • Programmable for manual reset or hysteresis function • Analogue output for insulating value • External connection of indicating instrument possible • as option de-energized on trip or energized on trip • Width 100 mm	Download datablad
	Insulation monitoring relay motor windings BD 5877/241 • According to IEC/EN 61 557 • Setting range 200 kΩ to 2 MΩ • LED indicators • Output: 1 NO contact • De-energized on trip • Test button for function check • Reset button • Input for voltage detection • Manual reset available by bridge • Width 45 mm	Download datablad https://pim.dold.com/api/pdf/BD5877_241_en.pdf#en
	Insulation monitor IL 5881 • According to IEC/EN 61 557-8 • For DC voltage systems up to 12 ... 280 V • Wide voltage range of measuring input UN DC 12 ... 280 V (on request DC 24 ... 500 V with separate auxiliary supply, Measuring range 20 ... 500 kΩ) • Adjustable tripping value RAL of 5 ... 200 kΩ • Selective ground fault indication for L+ and L- allows fast fault finding • Without auxiliary supply • De-energized on trip • 2 changeover contacts • Automatic or manual reset, programmable • With test and reset buttons • Connection for external test and reset button possible • galvanic separated AC or DC auxiliary supply available as option • adjustable time delay as option • 2 models available: IL 5881: 61 mm deep with terminals near to the bottom to be mounted in consumer units or industrial distribution systems according to DIN 43 880 SL 5881: 98 mm deep with terminals near to the top to be mounted in cabinets with mounting plate and cable ducts • 35 mm width	Download datablad
	Insulation monitor SL 5881 • According to IEC/EN 61 557-8 • For DC voltage systems up to 12 ... 280 V • Wide voltage range of measuring input UN DC 12 ... 280 V (on request DC 24 ... 500 V with separate auxiliary supply, Measuring range 20 ... 500 kΩ) • Adjustable tripping value RAL of 5 ... 200 kΩ • Selective ground fault indication for L+ and L- allows fast fault finding • Without auxiliary supply • De-energized on trip • 2 changeover contacts • Automatic or manual reset, programmable • With test and reset buttons • Connection for external test and reset button possible • galvanic separated AC or DC auxiliary supply available as option • adjustable time delay as option • 2 models available: IL 5881: 61 mm deep with terminals near to the bottom to be mounted in consumer units or industrial distribution systems according to DIN 43 880 SL 5881: 98 mm deep with terminals near to the top to be mounted in cabinets with mounting plate and cable ducts • 35 mm width	Download datablad
